DEFINITE PREVENTION FROM FOREST FIRE
DEFINITIVE PREVENTION FROM FOREST FIRES by Andrea Salvatore Buffa
DEFINITE PREVENTION FROM FOREST FIRE
by the industrial designer Andrea Salvatore Buffa, Palermo.
2 Peter 3:13 But according to his promise we look forward to new heavens and a new earth, in which righteousness dwells.
NB: Hoping for massive sharing because it is the only practical and fast solution to securely perimeter homes
Some of my works in the following link:
https://italianyachtdesign.wordpress.com/
Of significant global importance, it is not an invention or an industrial invention to be placed on the market but a regional, national and global guarantee for the protection of natural environments and the life they contain.
This is therefore an easy-to-understand technical explanation that invites everyone everywhere to definitively prevent fires , or, by making cordons at a safe distance from the fumes in the case of ongoing fires with a number at least equal to when you go to the stadium .
Beware of changes in wind direction.

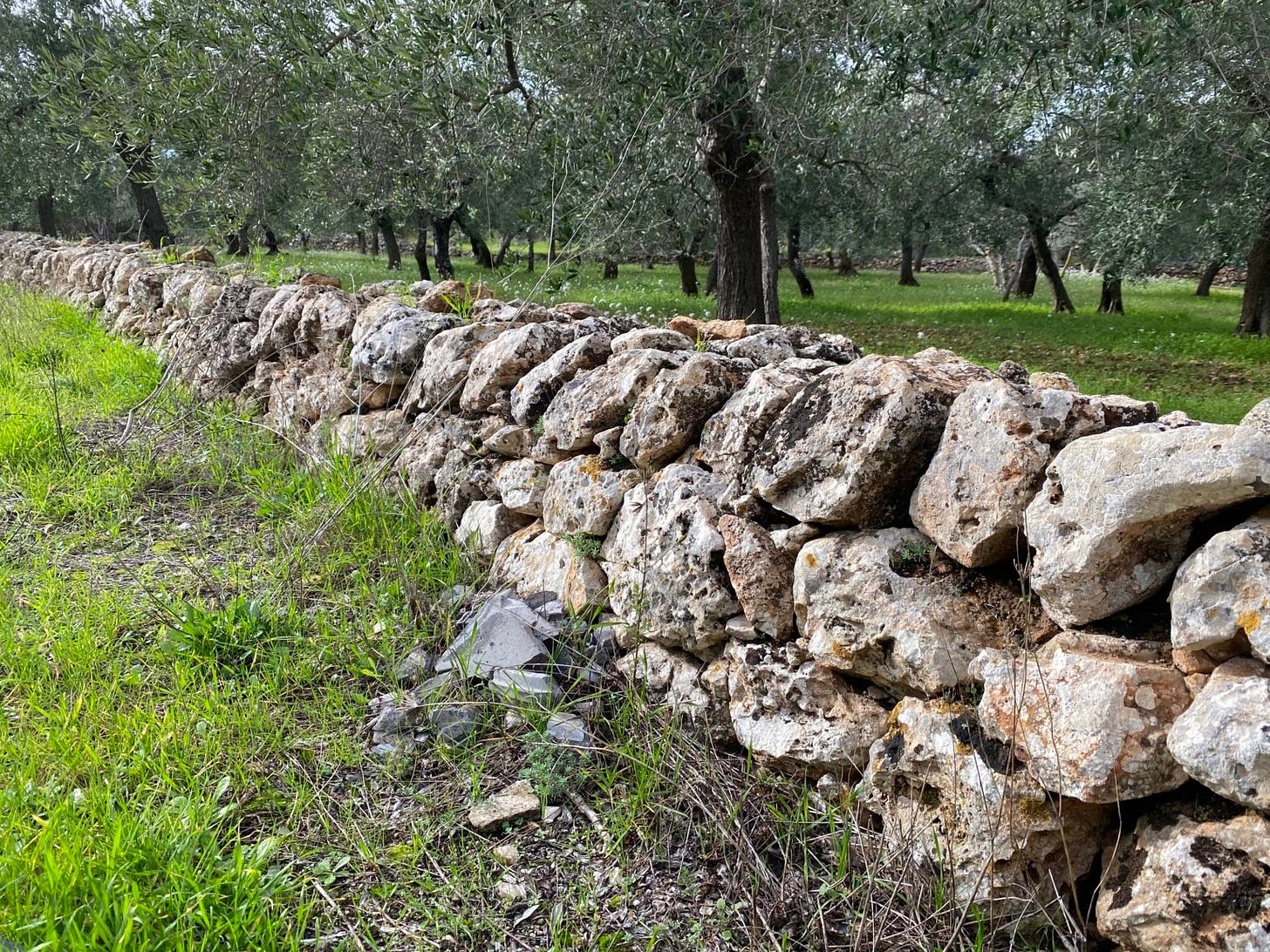

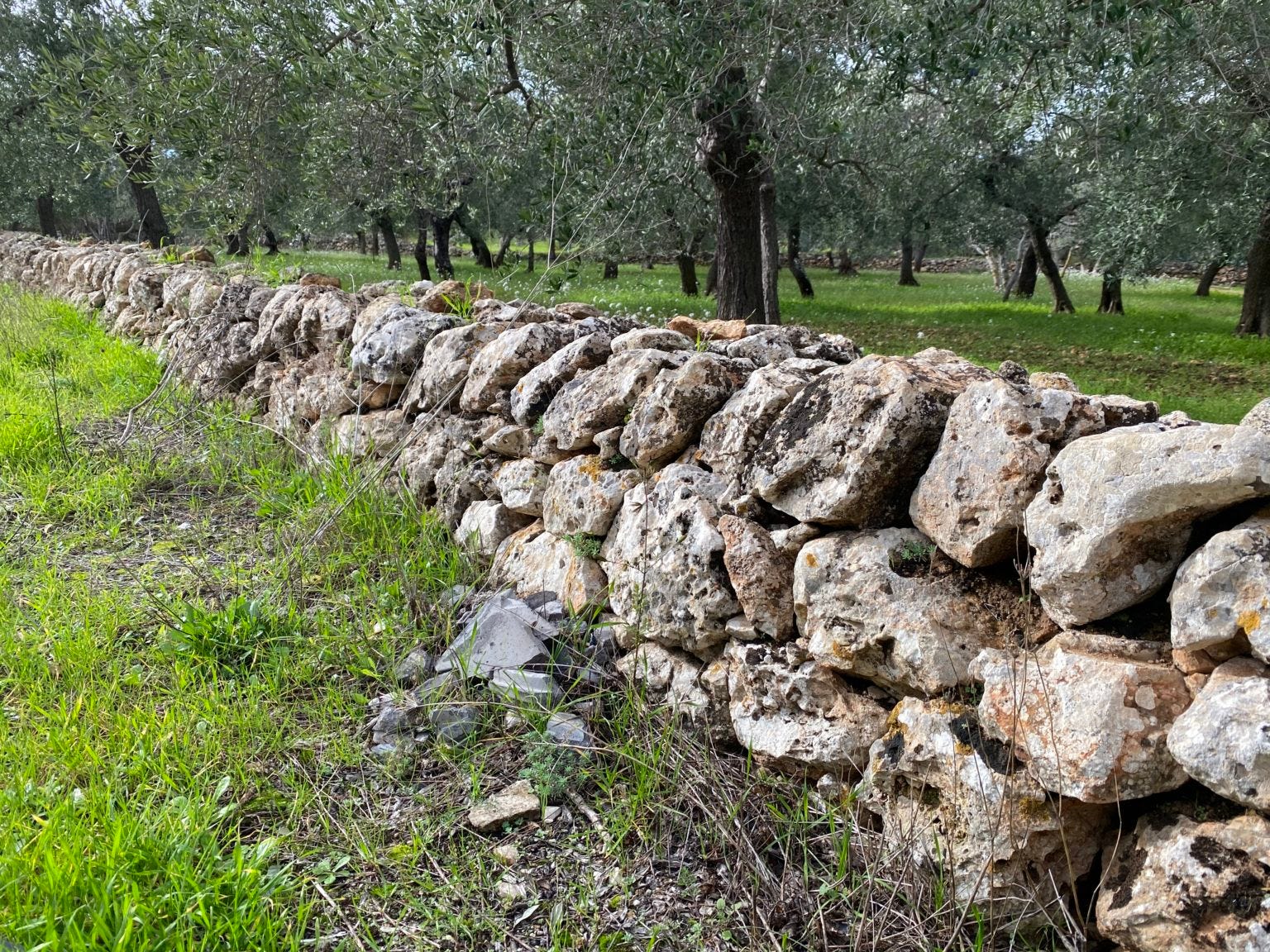

Cordons of recovered dry stone in the area that act as a curfew, as long as it is 40 cm wide and that it has at least two layers that do not let the grass grow. This is a job that will still have to be done, delimiting all the places in a checkerboard pattern . Especially starting from reciting the inhabitants. Low stone curbs.
Fig.1
This was my statement on Facebook pages that went unheard:
Everywhere, as a prevention, all citizens must mobilize, making cordons at a safe distance from the fumes. Cordons of recovered dry stone in the area that act as a curfew, as long as it is 40 cm wide and that it has at least two layers that do not let the grass grow. This is a job that will still have to be done, delimiting all the places in a checkerboard pattern . Especially starting from reciting the inhabitants. Low stone curbs.
Beware of changes in wind direction.
Do we want to report?
Art. 656 Criminal Code, Publication or diffusion of false, exaggerated or tendentious news, aimed at disturbing public order
Whoever publishes or disseminates false, exaggerated or tendentious news, for which public order could be disturbed, is punished, if the fact does not constitute a more serious crime, with imprisonment of up to three months or with a fine. up to three thousand lire.
In the desert it's hot but the grass doesn't burn, so here it was always painful, in fact dry grass generally has an ignition temperature between 200 and 300 degrees Celsius (392 to 572 degrees Fahrenheit). It is important to note that this range is an approximation and can be affected by factors such as the specific composition of grass, its moisture content, and environmental conditions.
https://4safetysupport.com/dry-grass-burning-temperature/
Psalms 68:3 But the righteous will rejoice, they will triumph in the presence of God, and they will exult with joy.
Hebrews 11:1 Now faith is the assurance of things hoped for, the demonstration of realities not seen. 2 Indeed, good testimony was borne by it to the ancients.
3 By faith we understand that the worlds were formed by the word of God; so the things that are seen have not been taken from things that appear.
#forestfire #forestfires #IncendiosForestales #IncendioForestal
TITLE
Curfew system to stem the spread of forest fires.
A contiguous modular fence acting as a curfew barrier with separate compartments.
Delimit, delimit areas subject to risk through a contiguous barrier
of stony, stony materials, stones, pebbles, pebbles, gravel, crushed stone, rubble, that is, materials easily available on site.
Fig.2
DESCRIPTION
A method to protect nature from accidental and malicious fires, as safe and low-cost prevention.
These are cords of stone, crushed stone, dry gravel recovered in the area that act as a curfew, as long as it is at least 40 cm wide along the entire length and that it is at least with two, three layers necessary to prevent the grass from growing to prevent the spread of flames and fires from one side to the other.
It is a practical method for delimiting all places at risk of fire in a checkerboard pattern.
The novelty consists in encircling the birth of a fire in a preventive and functional way with the immediate result with practical effects, through a belt of suitably arranged stone materials .

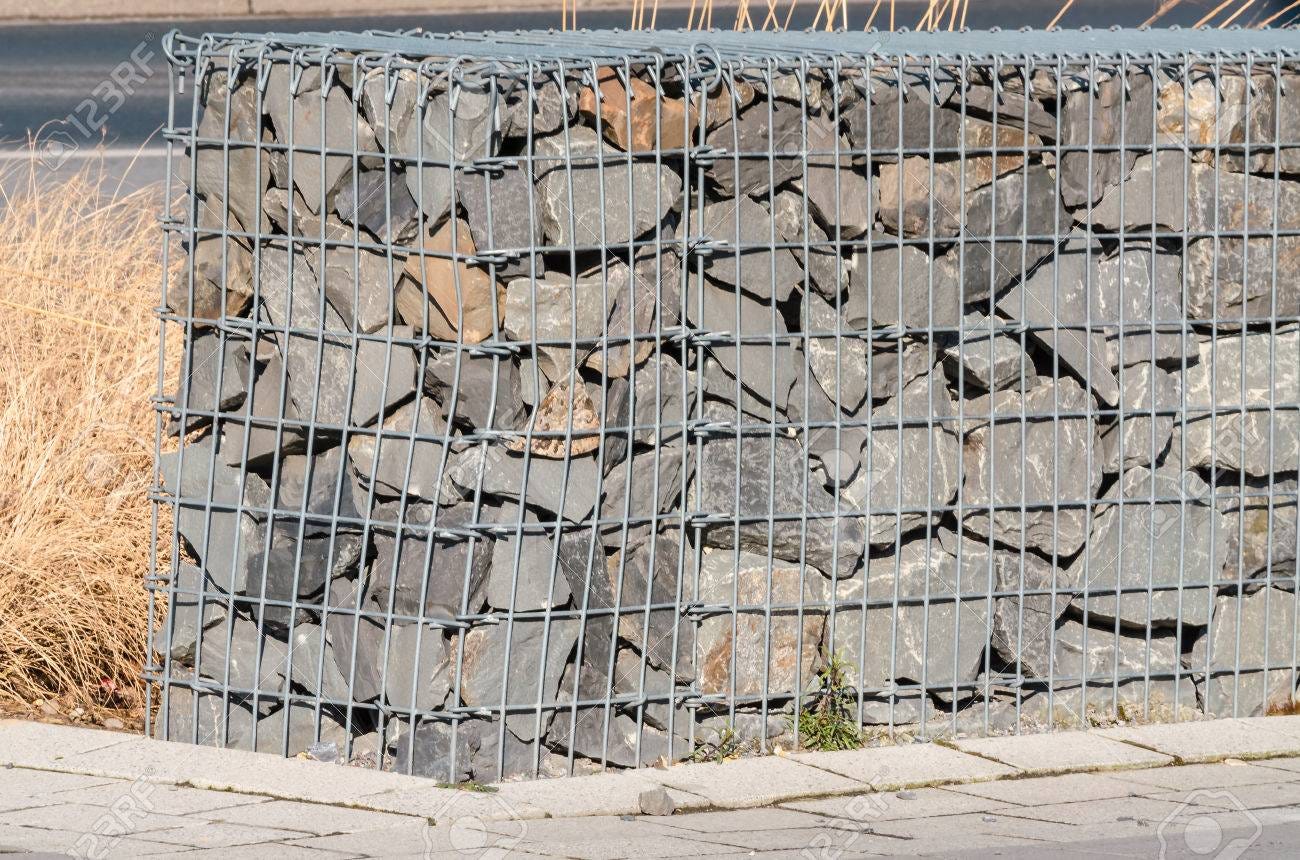

Industrialisable modular methods, means and forms can be used, such as bricks, modular containment nets.
But the prerogative is preventive protection with segmentation, or better to say, subdivision into parts divided by curbs in stony stone material that can be found along the route on site.
Low fence also to safeguard built-up areas and homes near reserves, woods, forests and where necessary.
STATE OF THE ART
We now suffer extreme consequences from summer fires every year due to the spread of fires and flames among spontaneous vegetation in places far from ordinary frequentations but rich in vegetation and life.
They are always caused by anonymous arsonists who are difficult to identify to stop.
The most accessible systems are with dedicated aircraft called canadairs, but generally you have to deal with fast spreading winds.
The proposed method is the most suitable and easy to implement which does not require specialized manpower and which could be a source of pride in the collaboration of citizens.
"Incredible effort on the part of all, involved in the love for their land, congratulations to all!", we hope to soon find publications with a similar title.
Come on, like for the stadium, a wave that stops the fires forever!
CONSTRUCTION TECHNIQUE
FOUNDATION
The foundation is not strictly necessary considering that it is not a fence wall, but an anti-spread fire barrier, a barrier that could also act as a walkable path and, if in this regard, however, a dug trench is required to allow the loading of weights upper and a width of at least 80 cm.

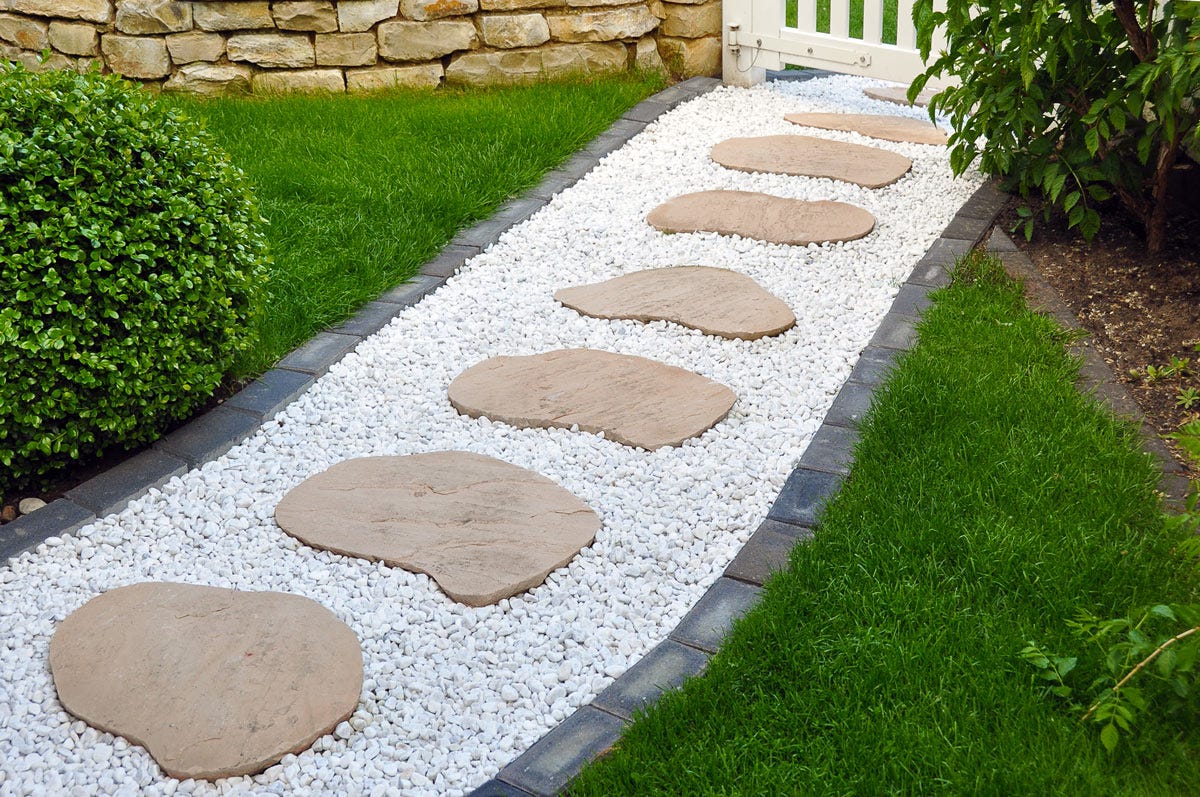

The functioning therefore depends on the height in terms of barrier/wall and on the width in terms of path as in the example in the following figure Fig. 3
Indicatively we have:
As a barrier width 40 cm and height 20 cm;
And as a path width 80cm height 10cm.
Fig.3
CONSTRUCTION NOTES

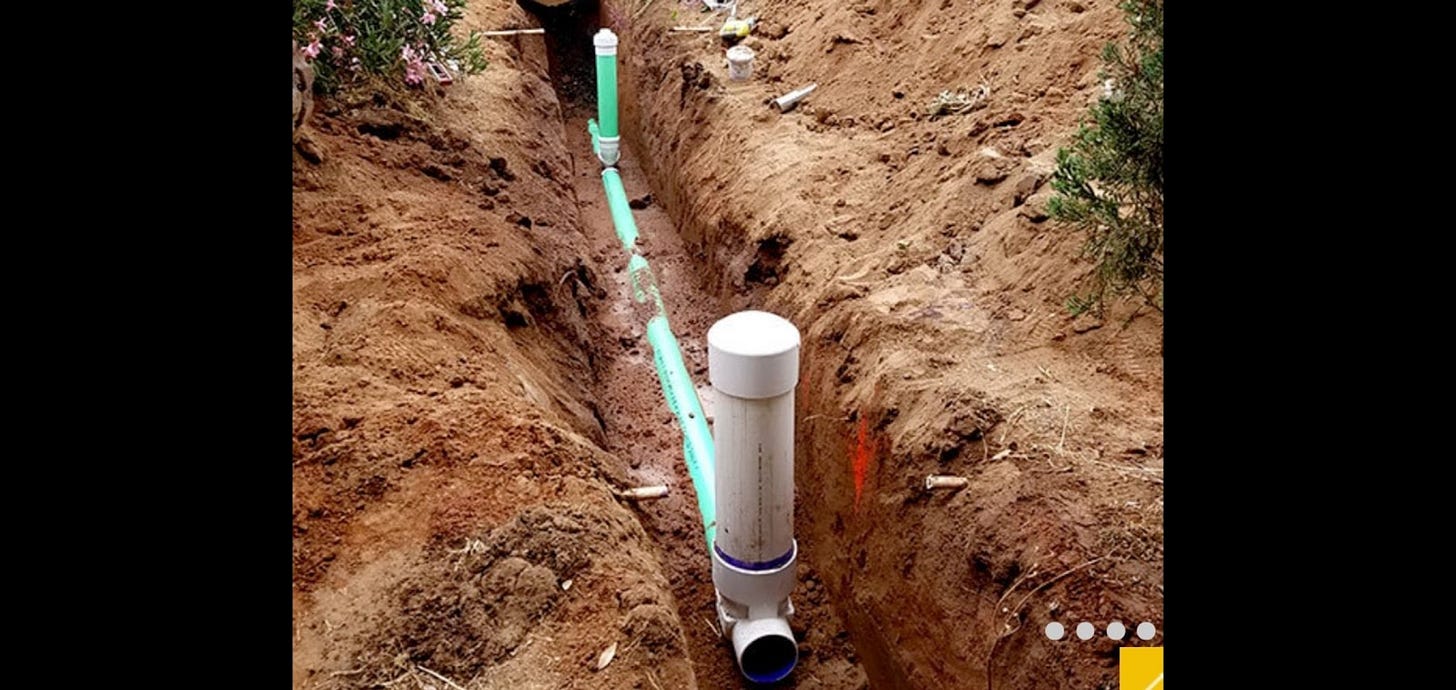

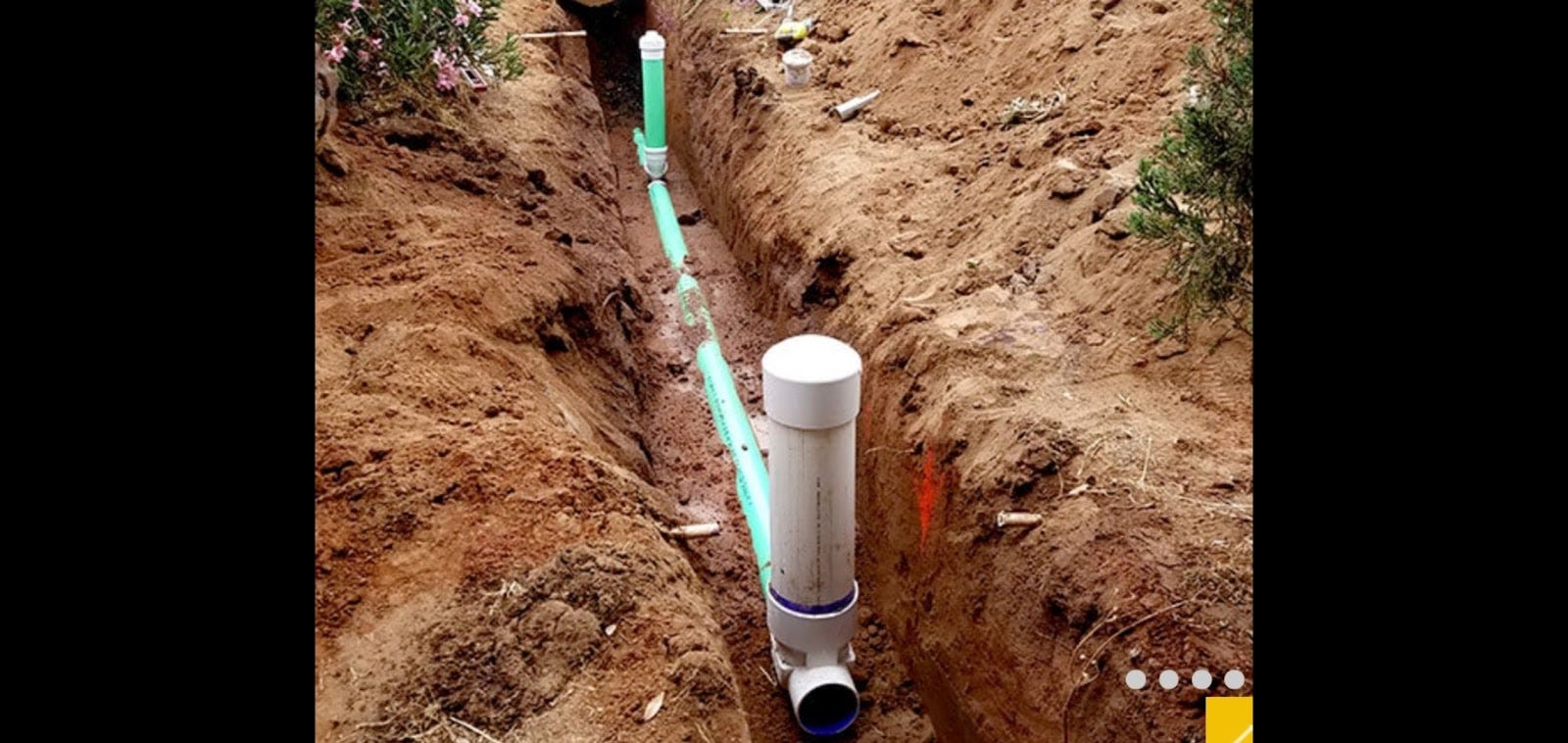

1 It is possible, if necessary, to lay pipes once the trench has been dug;
2 It is very important to foresee a possible accumulation of rainwater on the slopes, in this case leave openings, spaces of a few centimeters between the laying of the first stones to facilitate the passage of water if in abundance.
TRENCH

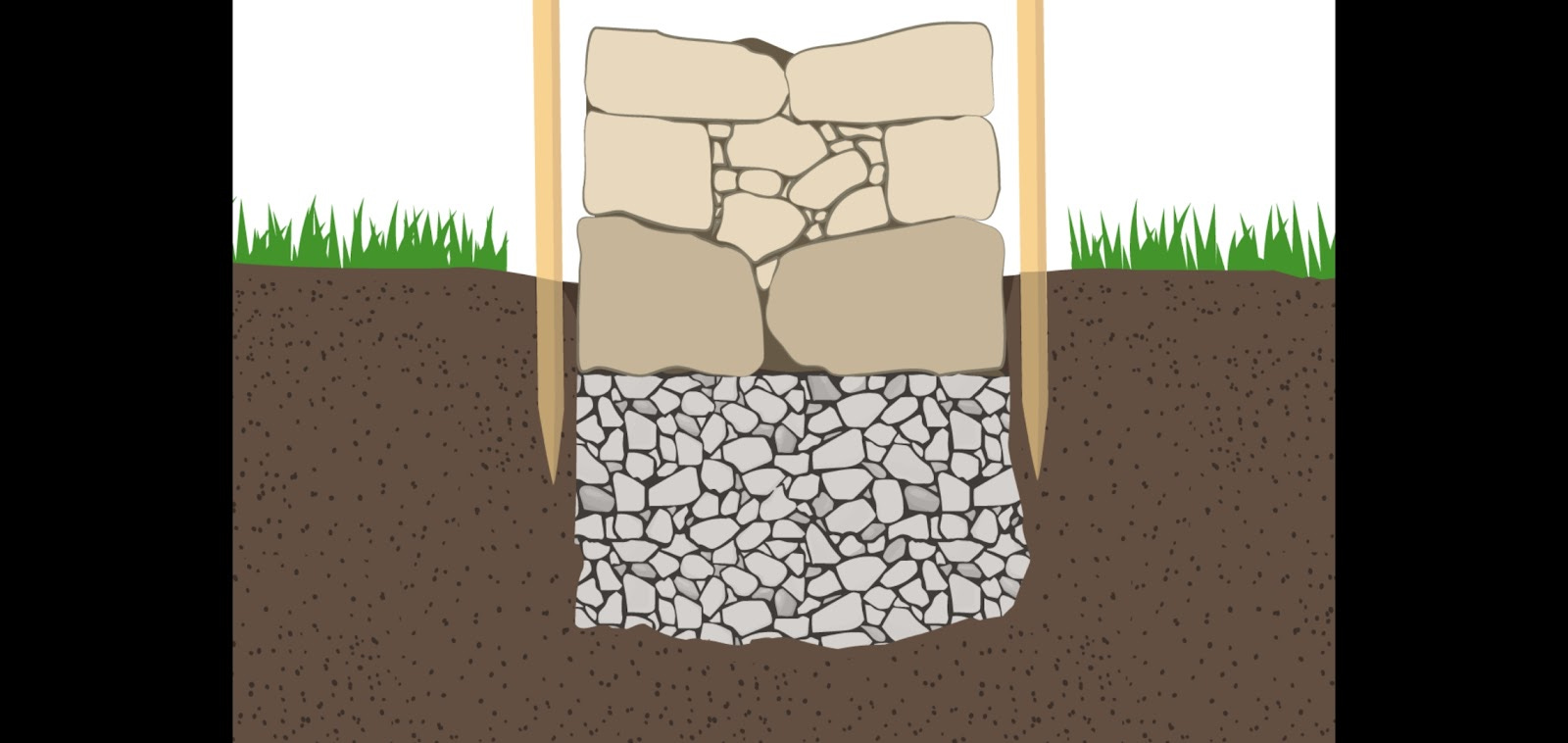

1 Dig a sufficiently wide trench no less than 40 cm and at least 20 cm deep along the entire length of the curfew system;
2 Fill the trench with gravel or crushed stone up to about 10 cm below the edge of the ground so that it remains inside and does not come out with the rains;
Fig.4
LAYING THE STONE

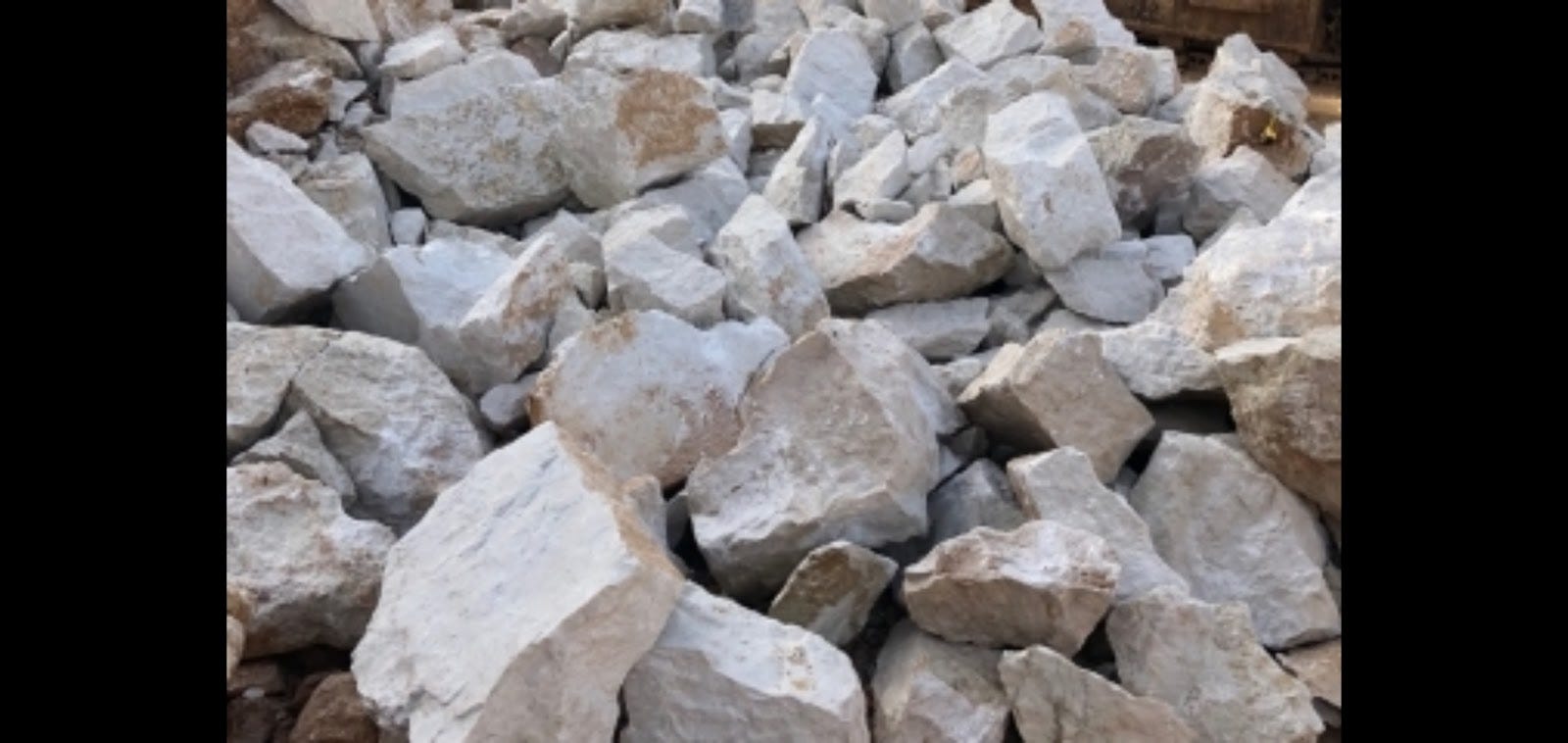

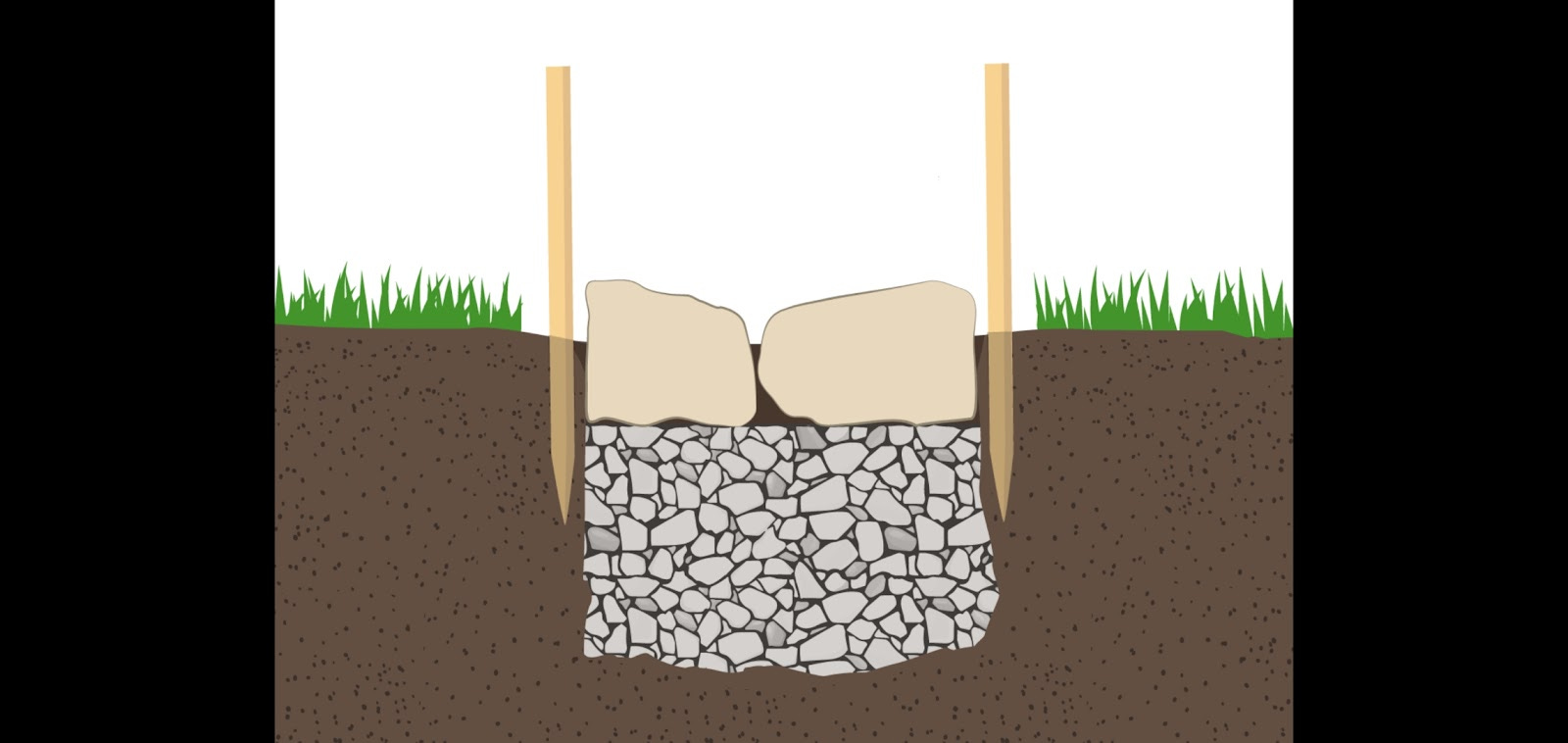

3 For a solid foundation, you should always arrange the largest and heaviest stones in the bottom row. These can be very irregular in shape. Lay these first stones on the ground so that one flat side is facing up.
4 These surfaces must not be perfectly horizontal, but slightly inclined towards the inside of the wall, so that the load of all the rows of stones above is directed towards the center of gravity of the wall.
Fig. 5
5 Fill the joints between the stones with crushed stone, gravel, so as not to contain area and avoid the passage of the wind so as to make it stagnant to the spread of fire.
LAYING THE TOP LAYERS
Also use large ashlars for the second row so you don't have to lift them very high. From now on, you must apply a fundamental principle of building a wall: continuous vertical joints must be avoided at all costs. Place the stones one at a time on the laying surface, offsetting the vertical joints of the overlapping rows.
Make sure you arrange the stones with the flatter sides facing down and up, and with the nicer side showing. For reasons of stability, avoid placing the stones upright.
After laying a new row, check with a spirit level that it is fairly level. If a stone doesn't rest perfectly, he tries to stabilize it. If necessary, chip it with a hammer or fit it using smaller stones (chips) as shims. These small ashlars should have the tip pointing outwards to prevent them from slipping off.
If you have many irregular or rounded stones, place the worst ones in the center of the wall and interlock them so that they are stable enough. Then place ashlars with at least one flat side along the sides of the wall. If you don't have enough stones to fill the wall inside, you can also use crushed stone.
Fig.6
CLAIMS / CLAIMS:
Some of the images and part of the construction description was taken from How to build a dry stone wall in the garden on the Mano Mano company portal at the following link:
https://www.manomano.it/consigli/come-costruire-un-muretto-a-secco-in-giardino-10029
